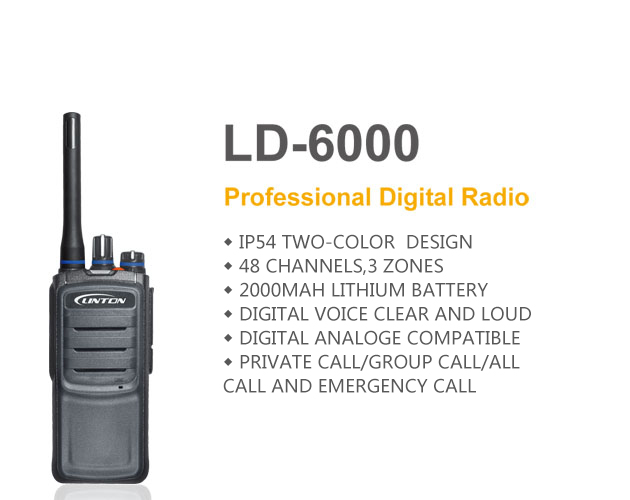

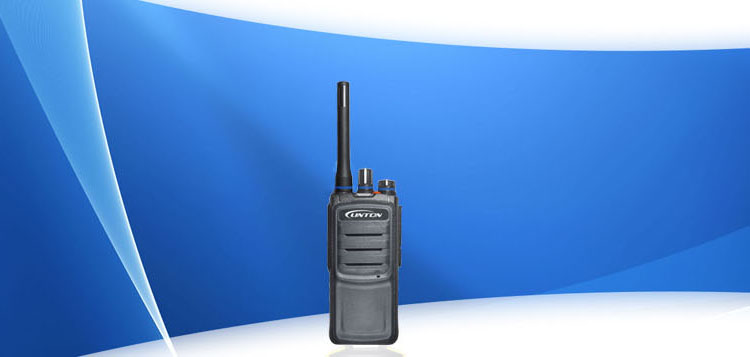

LD-6000 Digital Professional Hand-Held Radio
General specifications
Frequency Range
VHF:136-174MHzUHF:400-470MH
Number Of Channels
48
Channel Spacing
Simulation: 25/12.5KHzNumber: 12.5khz
Operating Voltage
7.4V
Standard Battery
2000mah (lithium ion)
Battery Average Working Hours (5-5-90 Working Cycles)
About 18 hours
Frequency Stability
±1.0PPM
Operating temperature Range
-20℃~+50℃
Antenna Impedance
50Ω
Dimensions (H x W x D)(Without Antenna)
121×55×34mm
Weight (Including Antenna And Battery)
295g
transmitter
Output Power
UHF:4.0W/1.0W VHF:5.0W/1.0W
Modulation (Analog)
11KΦF3E@12.5KHz16KΦF3E@25KHz
Modulation (Digital)
12.5KHz Data and voice 7K60FXW. Data only 7K60FXD
Clutter And Harmonics
-36dBm<1GHz-30dBm>1GHz
Signal To Noise Ratio
40/45dB
Audio Distortion
≤3%
Modulation Limit
±2.5@12.5KHz±5.0@25KHz
Audio Response(300 ~ 3000HZ)
+1to-3dB
Digital Vocoder Type
AMBE++
Digital Protocol
ETSI-TS102361-1.-2.-3
Receiver
Sensitivity (Simulation)
≤0.20μV(12dB SINAD)
Sensitivity (Number)
≤0.20μV/BER3%
Adjacent Channel Selectivity
≥60dB
Intermodulation
≥60dB
Spurious Response Suppression
≥60dB
Signal To Noise Ratio
40/45dB
Audio Output Power
≥500mW
Audio Distortion
≤5%
Audio Response
+1~-3dB
Conduction Emission Miscellaneous
<-57dBm
400-470MHz. As the technology continues to develop, the above specifications are subject to change without notice.
