Product description：

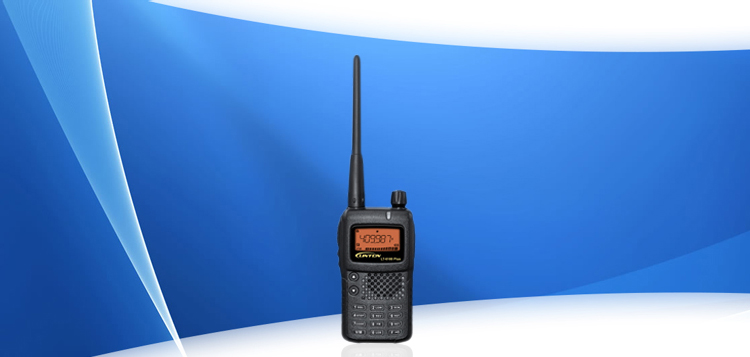

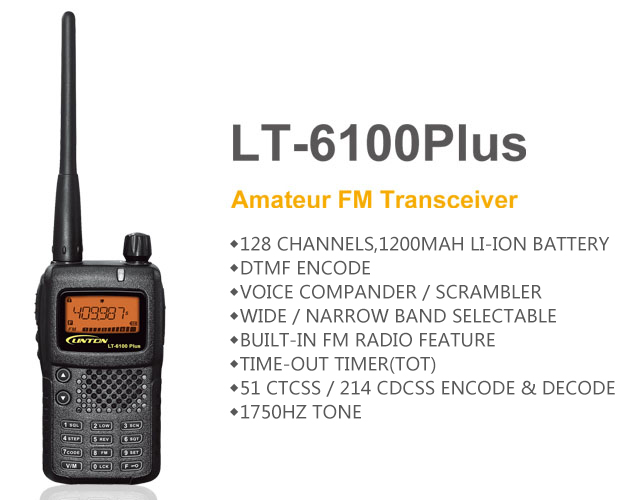

LT-6100Plus Multi-Function Professional Walkie-Talkie
General specifications
Frequency Range
136-174MHz；400-470MHz
Number of channels
128
Operating Voltage
7.4V
Frequency stability
±2.5PPM
Operating temperature range
-20℃~+60℃
Antenna impedance
50Ω
Dimensions (H x W x D)(Without antenna)
98 x 53 x 30mm
Weight (including antenna and battery)
205g
transmitter
Output Power
U:4W/1W V:5W/1W
Modulation
F3E
Modulation characteristics
+3dB
Signal to noise ratio
30/40dB
Audio distortion
≤5%
Modulation limit
±2.5/5KHz
Lead power
>55/65dB
Receiver
Sensitivity
<0.20µV
Adjacent channel selectivity
≥60/70dB
Intermodulation
≥60dB
Spurious response suppression
≥60/70dB
Audio output power
450mW
Audio distortion
≤5%
The above specifications are tested in accordance with TIA/EIA-603 standard. The receive part specification applies only to 136-174MHz,
400-470MHz. As the technology continues to develop, the above specifications are subject to change without notice.
