Product description：

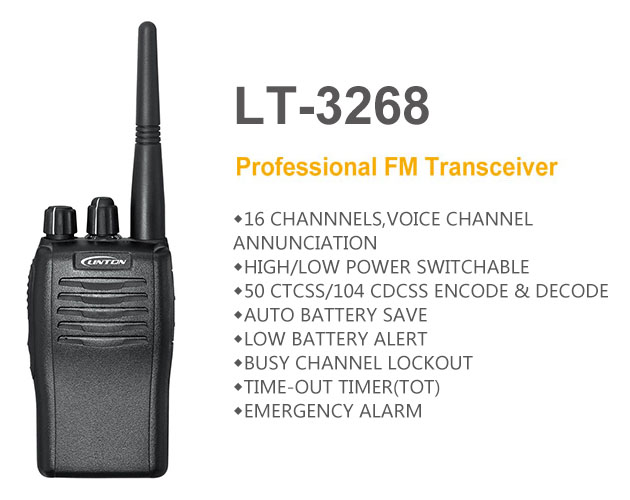

LT-3268 Multi-Functional Professional Walkie-Talkie
General specifications
Frequency Range
136-174MHz/400-430MHz/440-470MHz
Number of channels
16
Operating Voltage
7.4V
Frequency stability
±2.5PPM
Operating temperature range
-20℃~+60℃
Dimensions (H x W x D)(Without antenna)
100 x 55.5 x 31mm
Weight (including antenna and battery)
200g
transmitter
Output Power
LO: 1.0W, HI: 5.0W
Modulation
F3E
Lead power
>65dB
Signal to noise ratio
40dB
Audio distortion
≤5%
Modulation limit
±5KHz
Spurious radiation
<-60dB
Modulation characteristics
±3dB
Receiver
Sensitivity
<0.20μV
Adjacent channel selectivity
65dB
Intermodulation
≥60dB
Spurious response suppression
65dB
Audio output power
500mW
Audio distortion
≤5%
The above specifications are tested in accordance with TIA/EIA-603 standard. The receive part specification applies only to 136-174MHz,
400-470MHz. As the technology continues to develop, the above specifications are subject to change without notice.
