Product description：

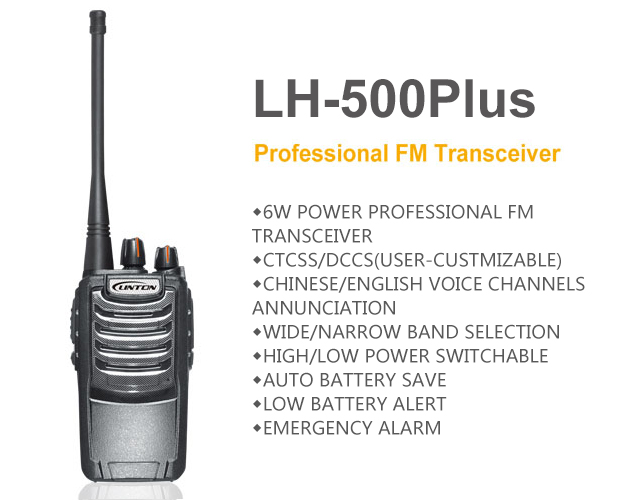

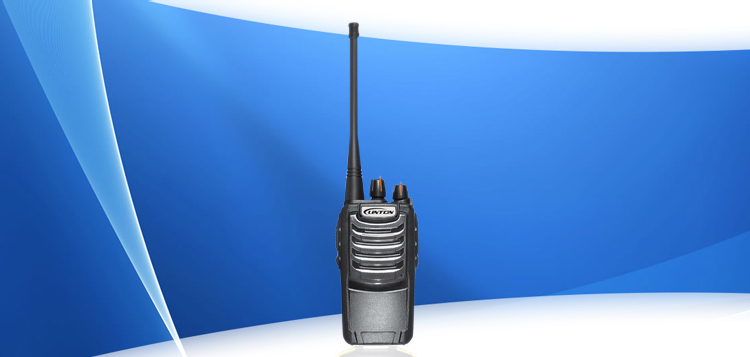

LH-500Plus Multi-Function Professional Walkie-Talkie
General specifications
Frequency Range
VHF: 136-174MHz UHF: 400-470MHz, 450-520MHz
Number of channels
16
Channel spacing
12.5/25.0KHz
Operating Voltage
7.4V
Standard battery
1800mah (lithium ion)
Modulation mode
F3E
Output Power
VHF:6.0W/2.0W UHF:6.0W/2.0W
Operating temperature range
-20℃~+60℃
Antenna impedance
50Ω
Dimensions (H x W x D)(Without antenna)
103 x 53 x 28.5mm
Weight (including antenna and battery)
235g
Sensitivity
≤0.3μV/0.2μV
Audio output power
500mW
The above specifications are tested in accordance with TIA/EIA-603 standard. The receive part specification applies only to 136-174MHz,
400-470MHz. As the technology continues to develop, the above specifications are subject to change without notice.
