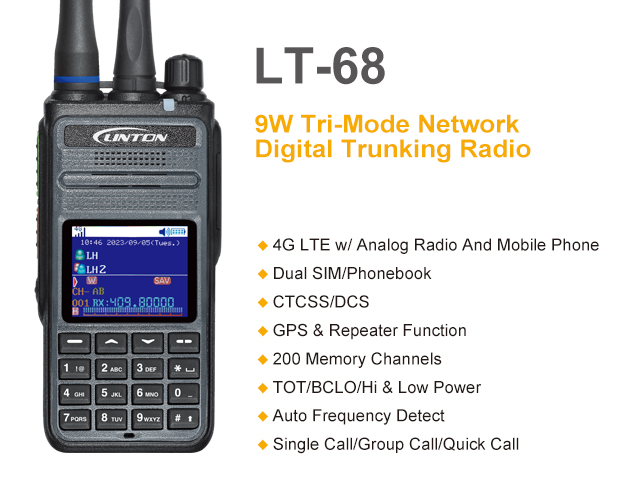

9W Tri-Mode Network Digital Trunking Radio
General specifications
Professional Two-way Radio
Professional Two-way Radio
Operation Voltage
7.4V
Frequency Range
350-480MHz
Weight (With Antenna & Battery)
289g
Step Frequency
5K/6.25K/12.5K/25K/50K/100K/250K/1M
Dimension (HxWxD) (Without Antenna )
113X54X36mm
Channel Capacity
200
Audio Power
≥900mW
Standard Battery
2600mAh
Operating Temperature
-20℃~+55℃
Antenna Impedance
50Ω
Network Digital PoC Radio
Network Digital PoC Radio
Operating Bands
Network Version A (Region: Latin America)
LTE-FDD Band: B2/B3/B4/B5/B7/B8/B28/B66
/
Operating Bands
Network Version B (Region: Asia/Europe)
LTE-FDD Band: B1/B3/B5/B7/B8/B20/B28
LTE-TDD Band: B38/B40/B41
Service Platform
User Defined
SIM Card Size
2 Nano SIM
transmitter
Modulation type
Broadband / Narrowband
16K F3E / 11K F3E
Pro-Channel Power
Broadband / Narrowband
≥65dB / ≥60dB
Spurious and Harmonics
Broadband / Narrowband
≤-36dBm / ≤-36dBm
Maximutm Frequency Offset
Broadband / Narrowband
±5KHz / ±2.5KHz
Audio Response
-1~3dB
Frequency Stability
±2.5ppm
Audio Distortion
≤5%
RF Power Output
≥9W
Receiver
Adjacent Channel Selectivity
Broadband / Narrowband
≤65dB / ≤60dB
Intermodulation
Broadband / Narrowband
≤65dB / ≤60dB
Spurious Response Rejection
Broadband / Narrowband
≤65dB / ≤65dB
S/N
Broadband / Narrowband
≥45dB / ≥40dB
Audio Response
-1~3dB
Audio Distortion
≤5%
Sensitivity
0.25µV (12dB/SINAD)
Work Time/Standby Time
12 Hours/48 Hours
