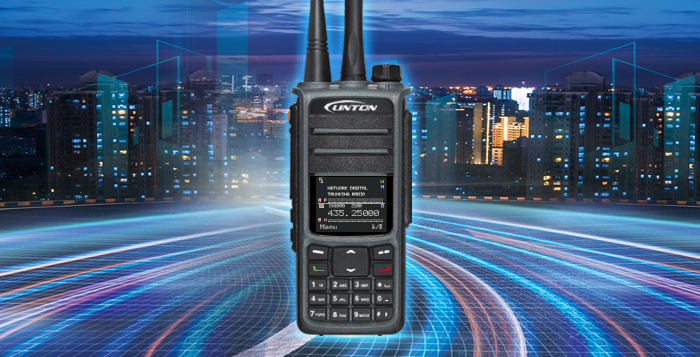

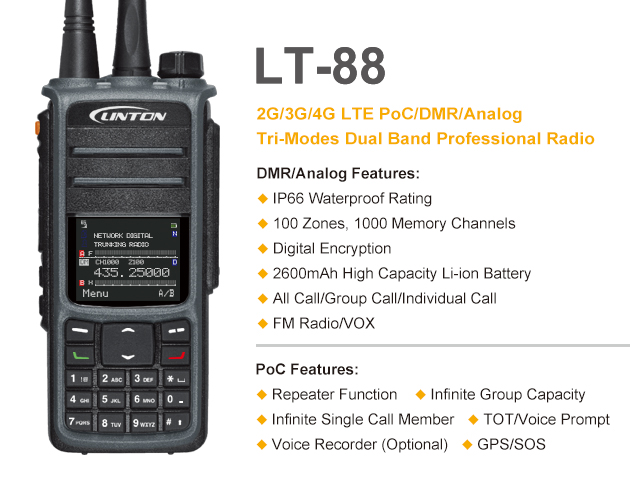

2G/3G/4G LTE PoC/DMR/Analog Tri-Modes Dual Band Professional Radio
General specifications
DMR/Analog Radio
DMR/Analog Radio
Frequency Range
Air Band: 108-137MHz (RX)
V/UHF: 137-176MHz/350-520MHz
Channel Capacity
1000
Channel Spacing
Analog:25.0/12.5KHz Digital:12.5KHz
Operation Voltage
DC7.4V
Battery Capacity
2600mAh (Li-ion)
Battery Life (5-5-90 Duty Cycle)
About 12Hours
Frequency Stability
±2.5ppm
Operating Temperature
-20 ~ +60℃
Dimension (HxWxD) (Without Antenna )
131 x 57 x 36mm
Weight (With Antenna & Battery)
356g
Network Digital PoC Radio
Network Digital PoC Radio
Operating Bands
Network Version A (Region: Latin America)
LTE-FDD Band: B2/B4/B5/B12/B13/B14/B66/B71
LTE-TDD Band: /
WCDMA Band: B2/B4/B5 GSM Band: /
Operating Bands
Network Version B (Region: Asia/Europe)
LTE-FDD Band: B1/B3/B7/B8/B20/B28A
LTE-TDD Band: B38/B40/B41
WCDMA Band: B1/B8 GSM Band: B3/B8
Service Platform
Real-PTT
SIM Card Size
2 Nano SIM
transmitter
RF Power Output
10.0W/5.0W/2.0W
Modulation Type (Analog)
11KΦF3E @ 12.5KHz , 16KΦF3E @ 25KHz
Modulation Type (Digital)
12.5KHz Data Only: 7K60FXD
12.5KHz Data & Voice: 7K60FXE
Spurious and Harmonics
-36dBm<1GHz; -30dBm>1GHz
FM Noise
40/45dB
Audio Distortion
≤5%
Modulation Limiting
±2.5KHz@12.5KHz; ±5.0KHz@25KHz
Audio Response
+1 to -3dB
Digital Vocoder Type
AMBE++
Digital Protocol
ETSI-TS102 361-1,-2,-3
Receiver
Sensitivity (Analog)
≤0.30µV (12dB SINAD);
0.22 (12dB SINAD)
Sensitivity (Digital)
≤0.30µV/BER5%
Selectivity
≥60/65dB
Spurious Response Rejection
≥60dB
Intermodulation
≥60dB
S/N
40/45dB
Rated Audio Power Output
1.5W
Rated Audio Distortion
≤3%
Audio Response
+1 to -3dB
Conducted Spurious Emission
<-57dBm
