Technical Specifications
| General Specifications | ||||||
| Frequency Range |
VHF: 136-174MHz UHF: 400-470MHz, 450-520MHz | Number of channels | 16 | |||
| Channel spacing | 12.5/25.0KHz | Operating Voltage | 7.4V | |||
| Standard battery | 1200mah (lithium ion) | Battery average working hours (5-5-90 working cycles) | About 11 hours | |||
| Frequency stability | ±2.5PPM | Operating temperature range | -20℃~+60℃ | |||
| Antenna impedance | 50Ω | Dimensions (H x W x D)(Without antenna) | 106 x 53 x 32mm | |||
| Weight (including antenna and battery) | 190g | |||||
| Transmitter | ||||||
| Output Power | UHF: 5.0W/1.0W, VHF: 5.0W/1.0W | |||||
| Modulation | F3E | |||||
| Clutter and harmonics | -36dBm<1GHz -30dBm>1GHz | |||||
| Signal to noise ratio | 45/40dB | |||||
| Audio distortion | ≤5% | |||||
| Modulation limit | ±2.5@12.5KHz; ±5.0@25KHz | |||||
| Audio response(300 ~ 3000HZ) | +1to-3dB | |||||
| Receiver | ||||||
| Sensitivity | ≤0.30/0.20µV | |||||
| Adjacent channel selectivity | 60dB | |||||
| Intermodulation | 60dB | |||||
| Spurious response suppression | 65dB | |||||
| Signal to noise ratio | 45/40dB | |||||
| Audio output power | 500mW | |||||
| Audio distortion | ≤5% | |||||

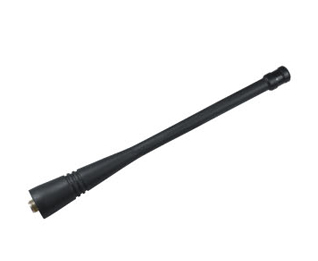

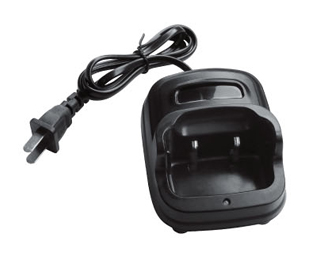

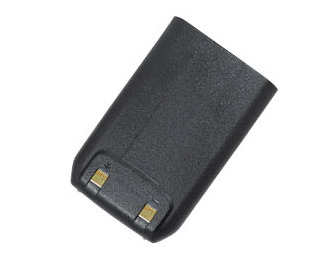

Standard Accessories
