Technical Specifications
| General Specifications | ||||||
| Professional Two-way Radio | Professional Two-way Radio | |||||
| Operation Voltage | 7.4V | Frequency Range | 400-480MHz | |||
| Weight (With Antenna & Battery) | 280g | Step Frequency | 2.5K/5K/6.25K/12.5K/25K/50K | |||
| Dimension (HxWxD) (Without Antenna ) | 127X60X37mm | Channel Capacity | 200 | |||
| Audio Power | ≥900mW | Standard Battery | 2600mAh | |||
| Operating Temperature | -20℃~+55℃ | Antenna Impedance | 50Ω | |||
| Network Digital PoC Radio | Network Digital PoC Radio | |||||
| Operating Bands | Network Version A (Region: Latin America) LTE-FDD Band: B2/B3/B4/B5/B7/B8/B28/B66 / |
Operating Bands | Network Version B (Region: Asia/Europe) LTE-FDD Band: B1/B3/B5/B7/B8/B20/B28 LTE-TDD Band: B38/B40/B41 |
|||
| Service Platform | Real-PTT | SIM Card Size | 2 Nano SIM | |||
| Transmitter | ||||||
| Modulation type |
||||||
| Broadband / Narrowband | 16K F3E / 11K F3E | |||||
| Pro-Channel Power | ||||||
| Broadband / Narrowband | ≥65dB / ≥60dB | |||||
| Spurious and Harmonics | ||||||
| Broadband / Narrowband | ≤-36dBm / ≤-36dBm | |||||
| Maximutm Frequency Offset | ||||||
| Broadband / Narrowband | ±5KHz / ±2.5KHz | |||||
| Audio Response | -1~3dB | |||||
| Frequency Stability | ±2.5ppm | |||||
| Audio Distortion | ≤5% | |||||
| RF Power Output | ≥9W | |||||
| Receiver | ||||||
| Adjacent Channel Selectivity | ||||||
| Broadband / Narrowband | ≤65dB / ≤60dB | |||||
| Intermodulation | ||||||
| Broadband / Narrowband | ≤65dB / ≤60dB | |||||
| Spurious Response Rejection | ||||||
| Broadband / Narrowband | ≤65dB / ≤65dB | |||||
| S/N | ||||||
| Broadband / Narrowband | ≥45dB / ≥40dB | |||||
| Audio Response | -1~3dB | |||||
| Audio Distortion | ≤5% | |||||
| Sensitivity | 0.25µV (12dB/SINAD) | |||||
| Work Time/Standby Time | 12 Hours/48 Hours | |||||

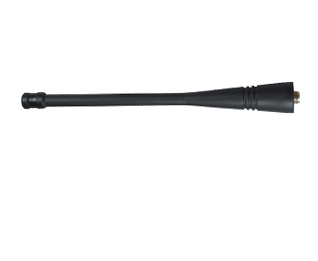

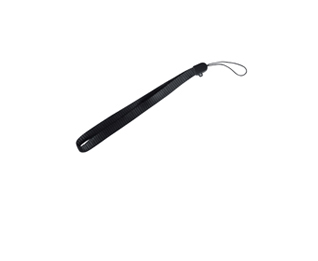

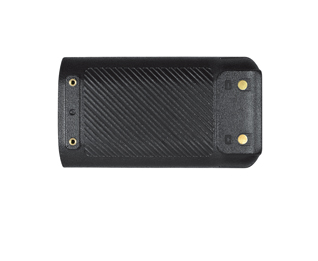

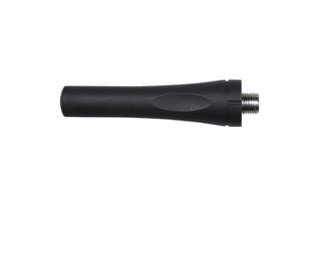

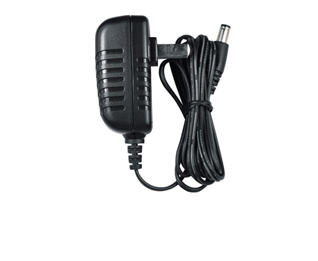

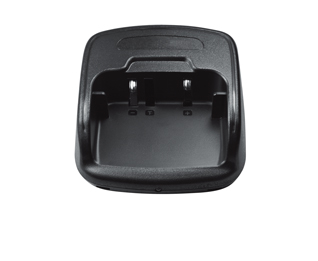

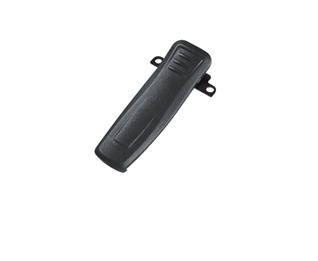

Standard Accessories
